Description of wall cavity combine wall tie truss to Rib lath cages
Wall tie truss to Rib lath cages is one kind of Non - dismantling anti - cracking wall cavity,it is wall cavity combined of longitudinal card buckle truss and metal mesh on both sides,also with wall tie hooping and horizontal steel bar,which is according to the project site preparation. The metal cage combines the advantages of metal rib and anti-cracking construction mesh.The card buckle truss has both functions of leveling hooping and shearing resistance and pulling resistance.Wall tie hooping and horizontal steel bar combines to form ring beam,which serves to ensure functions of ring beam and fixing card buckle truss. Wall tie truss to Rib lath cages have the features of easily and quickly assembled, disposable molding of metal rib and anti-cracking mesh,Non - dismantling anti - cracking,and free compound of steel bar both vertically and horizontally in the wall construction.
Application of wall cavity combine wall tie truss to Rib lath cages
Wall tie truss to Rib lath cages usually used in cast-in-situ fine aggregate concrete load bearing wall,cast-in-situ interior thermal insulation lightweight aggregate concrete walls, interior thermal insulation cavity non-bearing wall,loam wall and decorative wall.The formed wall is similar to the anti-shearing concrete wall combined of Φ6 steel bar both vertically and horizontally.(The number of steel bar can be freely adjusted according to project design requirements),has the same function and features of anti-shearing concrete wall,the metal mesh at both sides increases the anti-cracking function of the wall. The rough surface after casting has more benefit for the splicing of the plaster layer.It prevents the plaster layer from hollowing and stripping,greatly increase the using life of the wall.
Product square content
1.The card buckle truss 4.3 mts;
2.GI Metal rib lath 3.5 mts;
3.Card buckle stirrups 2 sets;
4.Gelatine powder 0.2 bags.

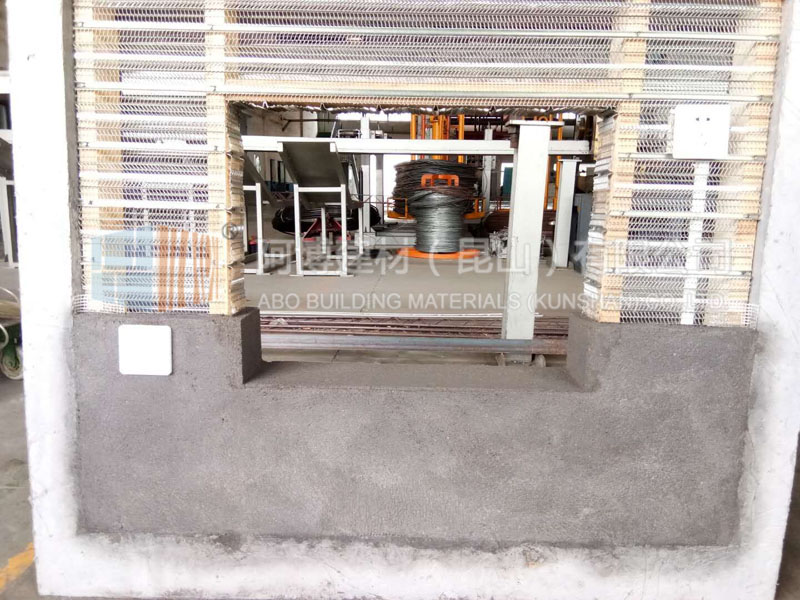

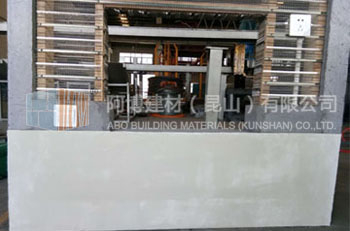

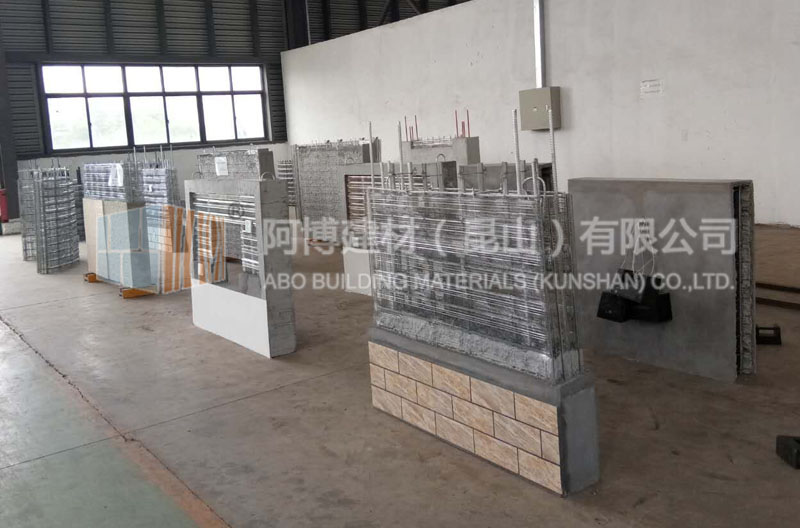

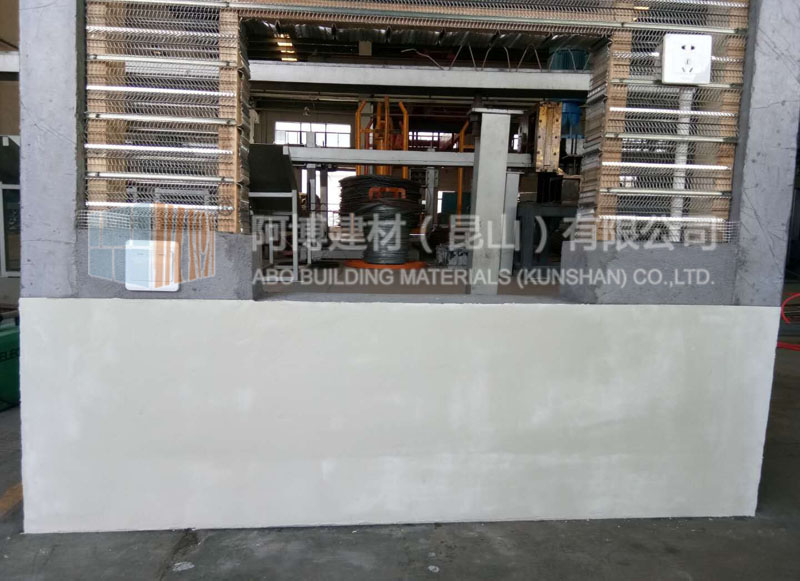

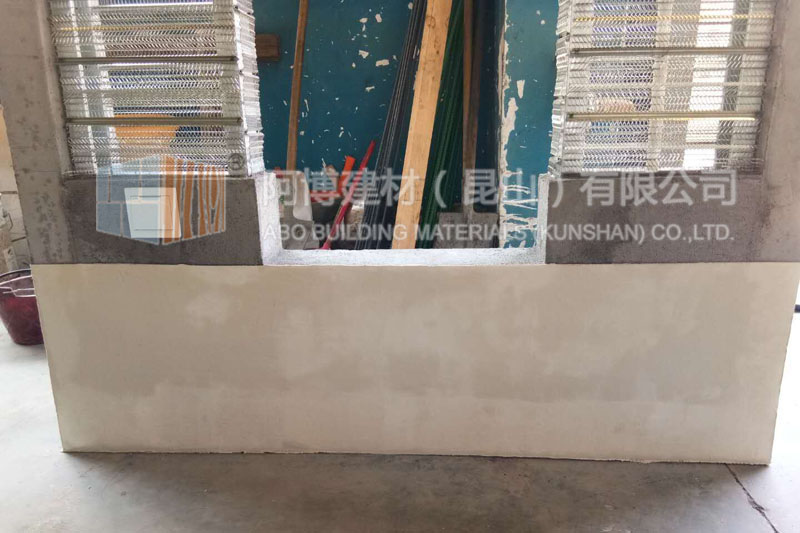

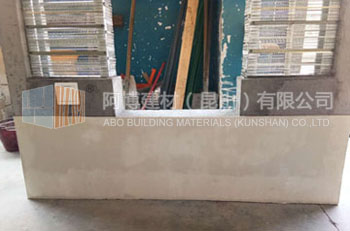

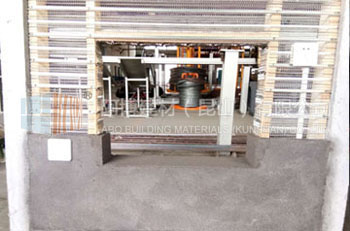

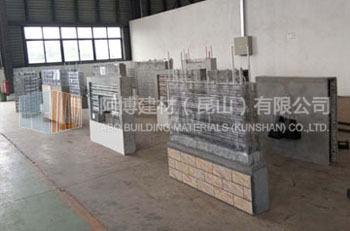

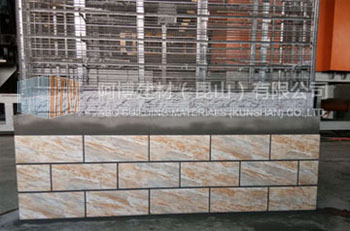

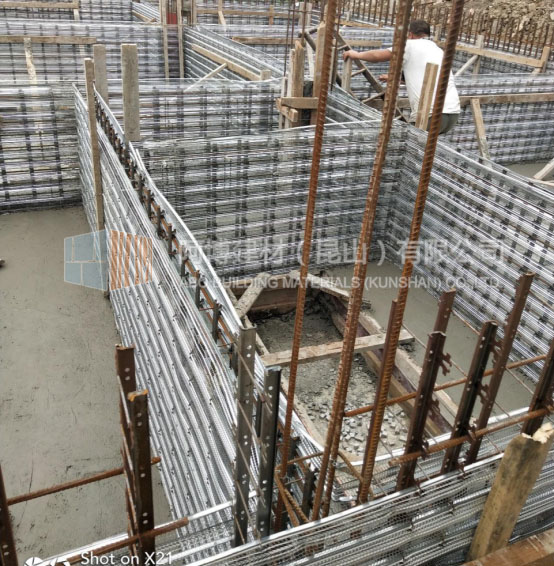

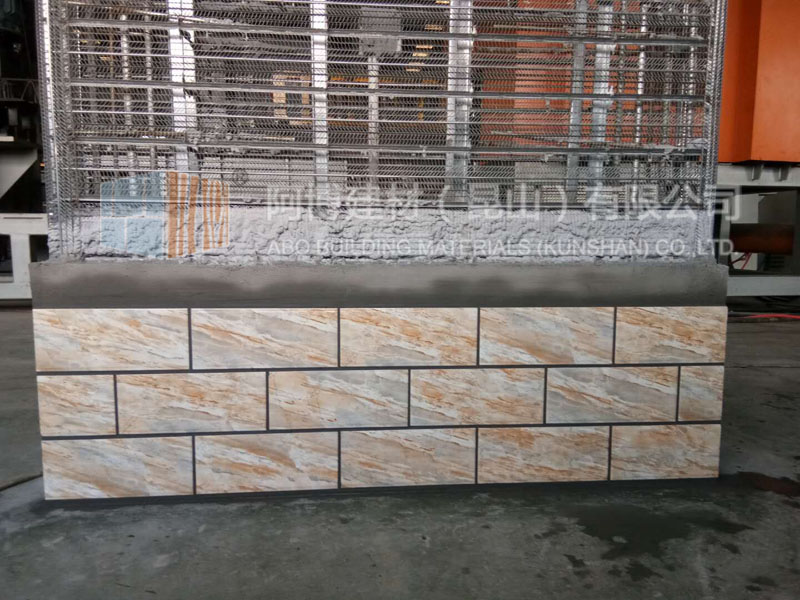

Product application legend
