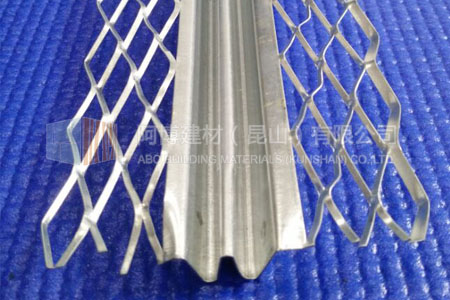

Movement bead

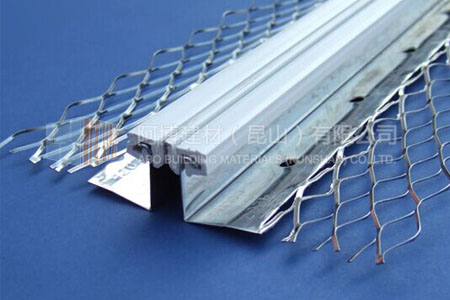

AB-CJB Movement beads

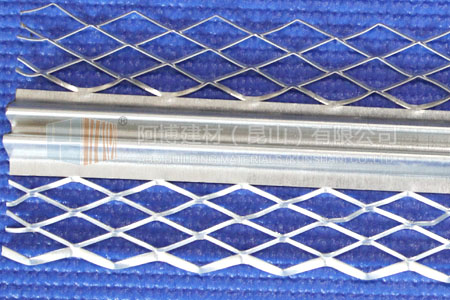

AB-CJB Control joint beads

AB-MB Movement bead

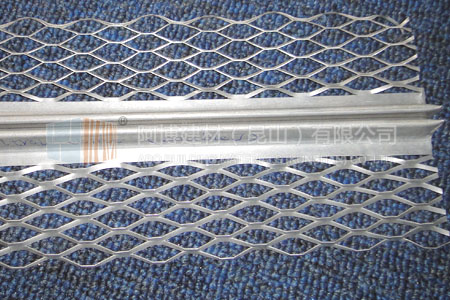

AB-CJB Control join

AB-CJB Movement bead

Description

The Control Joint Bead eases the stresses of the basic expansion and contraction associated with inherent shrinkage during stucco curing stage of the cement stucco (generally exterior or gypsum plaster interior) coats and minor thermal expansion and contraction.
The product is available in standard length form but with varying depths, which is necessitated because of the wide depth of plastering requirements it is involved in. Movement bead consists of two lengths of stop bead linked with a white PVC extrusion.
Movement bead allows +/- 3mm differential expansion or settlement movement between adjoining surfaces.

Specification

Reference
Total Wing width(mm)
Length(mm)
Plaster thickness(mm)
AB-CJB13
100
2400/3000
13
AB-CJB21
100
21
AB-MB10
140
10
AB-MB13
140
13
AB-MB16
140
16
AB-MB19
140
19
Note:
1. AB-CJB refers to Control Joint Beads, AB-MB refers to Movement Beads
2. All dimensions can be adjusted according to the customer requirements.

Applications

Designed to deal with normal initial stucco shrinkage during the hydrating and curing stage of the portland cement stucco coats and minor thermal expansion and contraction.
Provides clean, neat edges to 2 coat plaster and render work at opening or abutments onto other wall or ceiling finishes. Ensuring protection against chips, cracks and impact damage.

Availability

The product is available in standard length form but with varying depths, which is necessitated because of the wide depth of plastering requirements it is involved in.
Movement bead consists of two lengths of stop bead linked with a white PVC extrusion.
Movement bead allows +/- 3mm differential expansion or settlement movement between adjoining surfaces.

Advantages

Many advantages could be cited here over and above the existing products.
1. Plastering finish at expansion joints looks very neat and straight, thereby enhancing the aesthetic looks.
2. Provides perfect sealing at the joints there by stopping water seepages through the joints.
3. Minimum quantity of epoxy sealant is used thereby cutting cost.
4. Reduces the wastage of time while working with joints, and speeds up the pace of work.
