P32 Plaster-lock corner beads

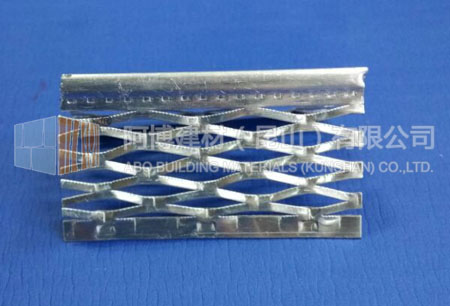

Expanded flange angle beads

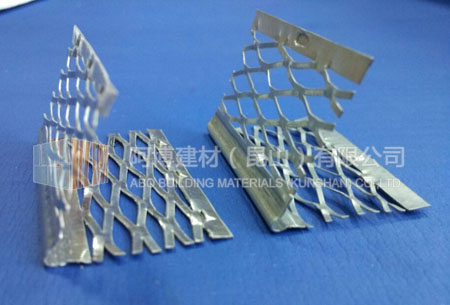

P32 Plaster-lock corner beads

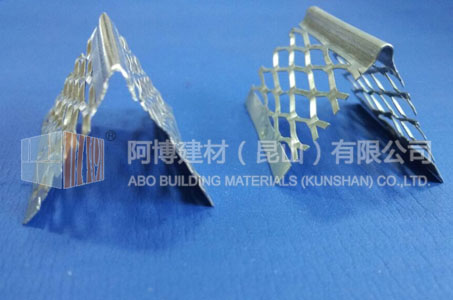

Expanded angle beads with reinforcement flange

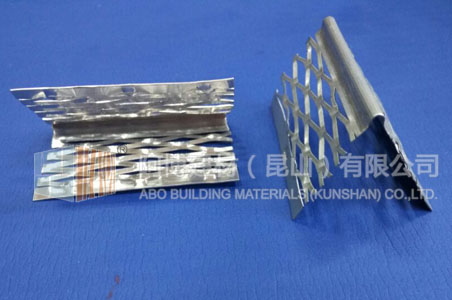

Angle bead with reinforce flange

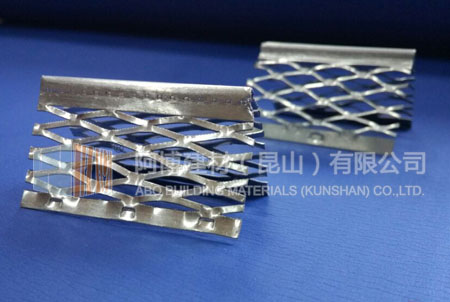

Angle bead with creased reinforce flange

Description of R01 corner beads

An expanded flange corner bead with extra long expanded flange. It has a steel rib running the length of the bead to provide nail holes and extra rigidity.
The P32 Plaster-lock bead is produced from 0.4mm GI steel, is an ideal for construction application. The angle beads with 32mm expanded wings to allow to get through and under the bead. Meantime, locking the beads to the building board.

Material

0.3-0.7mm Galvanized sheet, stainless steel sheet, aluminum sheet.

Specification

Model
The width of wing
Material
Material thickness
Length
Pc/Box
AB/R=2/32*32
32*32

Aluminum

GI Steel
0.3-0.7
2400/2700/3000mm
50
Notice: All dimensions can be customized according to your requirements.

Applications

The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.
The good performance of the item;
Galvanized finish to resist corrosion;
Perforated wing increases bond;
Reinforces plaster edges to prevent accidental damage;
Can be fixed with plaster, adhesive or mechanical fixings;
