Description

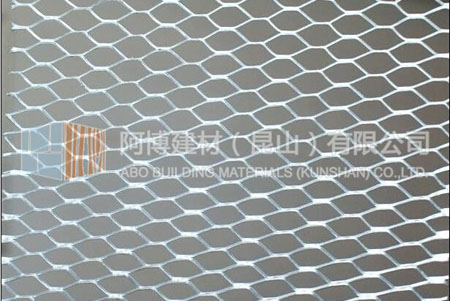

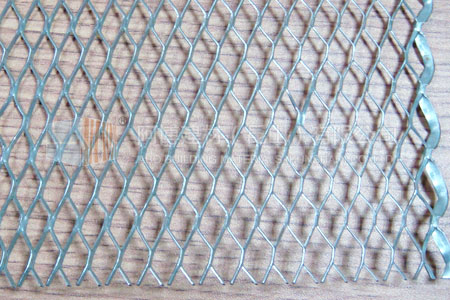

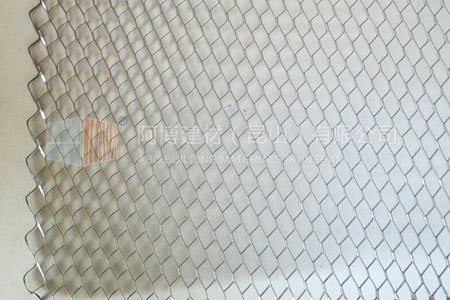

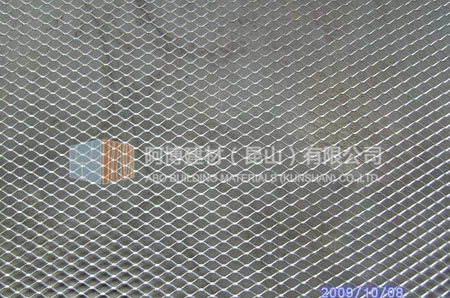

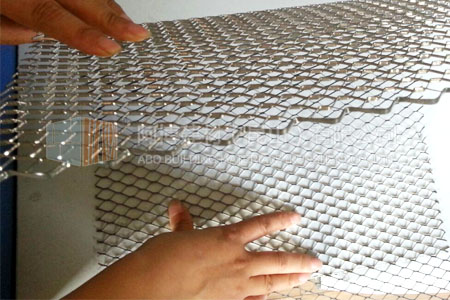

Diamond Mesh Lath is produced from thin galvanized steel strip, its LWD are lined regularly, and the mesh strand formed diamond shape with special structure, Self-furring embossed "V" groove holds the lath away from the surface to aid in the keying of stucco to the lath. A superior multi-purpose expanded steel base widely used for interior and exterior plaster and stucco reinforcement. The flat surface is easily cut and formed for use with flat or contoured surfaces. It is an excellent base for stone, spray on structural fireproofing, ornamental work, and under ceramic tile.

Specification

Reference	Weight	Size	Pcs/Bundle	Pcs/Pallet
AB-ML1.75	1.75 LBS/Sq Yd	27"*96"	10	500
AB-ML2.5	2.5 LBS/Sq Yd
AB-ML3.4	3.4 LBS/Sq Yd

Application

The diamond metal lath is uded in wall, reinforcing, construction crack, Plasterer network in industry, civil construction, irrigation, municipal, transportation, road, infrastructure and other projects, mainly for residential wall plaster, decorative building, repairing and reinforcing the warehouse.

Installation:

Scratch coat is being applied to "V" Groove Self-Furred Tilath. The lath is attached to the framing members with wafer headed screws. A screw is placed into each self-furred mechanism.	Scratch coat is fully embedded in the lath and is isolated from supporting structure. Water resistant backing paper allows controlled and uniform curing of this plaster foundation.
