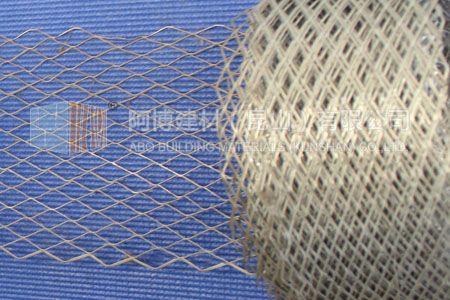

Block work expanded mesh
Gutter guard mesh
Coil lath
Brickwork reinforcement mesh brick
Expanded Coil lath
Description

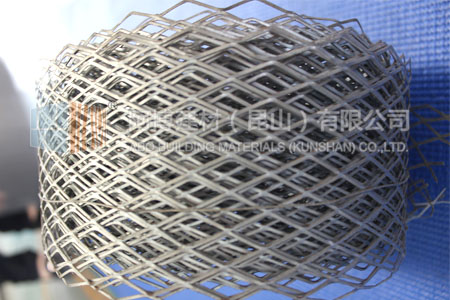

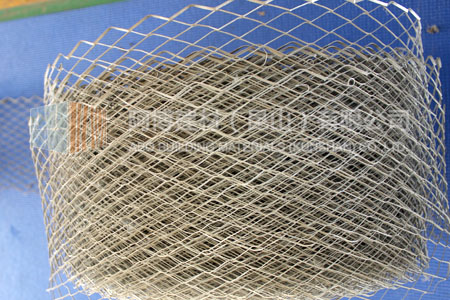

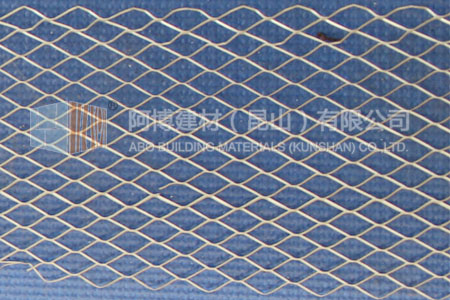

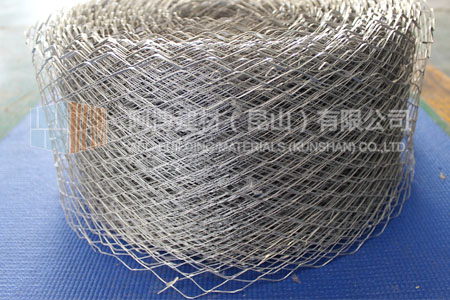

Brickwork Mesh, also called Coil lath, brickwork reinforcement mesh, is embedded in the normal thickness of brickwork joint, the mesh gives brickwork increased resistance to tensional stresses to reduces the detrimental effects of vibration and changes of temperature. The Coil lath is easily incorporated into mortar course, coiled for ease of handing.
Specification
Reference |
Coil width (mm/inch) |
Length(m) |
Thickness(mm) |
AB-BR2.5 |
63/2.5 |
20-100
|
0.3-0.5
|
AB-BR3 |
75/3 |
||
AB-BR4 |
100/4 |
||
AB-BR4.5 |
115/4.5 |
||
AB-BR6 |
150/6 |
||
AB-BR7 |
175/7 |
||
AB-BR8 |
200/8 |
||
AB-BR9 |
228/9 |
||
AB-BR12 |
305/12 |
||
All dimensions can be adjusted according to the customer requirements. |
Applications
Coil lath is used primarily as anti-cracking reinforcement in the construction of brick and block masonry. Anber supplies a series constructional wire mesh including expanded metal Coil lath for brickwork reinforcement in all types of buildings such as reinforcement of road, tunnel reinforcement, ground paving, swimming pools, concrete reinforcement and floor reinforcement.
