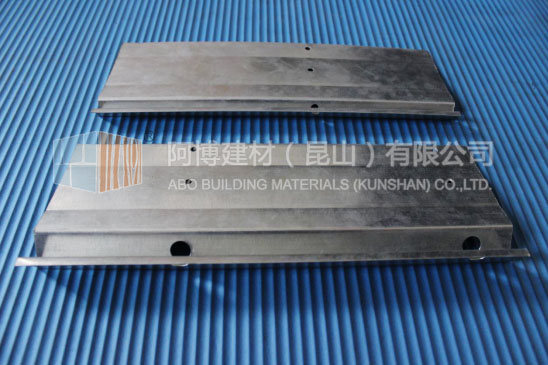

Description of foundation weep screed
ABO Foundation weep screed provides a straight,precise plastered surface for the bottom of the stucco wall,It also allows excess water to escape from the back of the plaster membrane.The stitching edge of the waterproof substrate paper and metal lath overlapped with the foundation weep screed is an important part,Its function is to draw water to the outer surface.Check with local building codes for proper safety clearance above grade.This kind of corner guard is required by most foreign building codes.
Note: Unpunched foundation weep screed has only one protruding nail hole.
Specification
SN | Size | Ground | PCS/Pallet |
Foundation weep screed abo FWS-425-500 | 4 1⁄4" | 1⁄2" | 1100 |
Foundation weep screed abo FWS-425-580 | 4 1⁄4" | 5⁄8" | 1300 |
Foundation weep screed abo FWS-425-750 | 4 1⁄4" | 3⁄4" | 1500 |
Foundation weep screed abo FWS-425-780 | 4 1⁄4" | 7⁄8" | 1700 |
Note: length can be customized according to customer requirements. |
