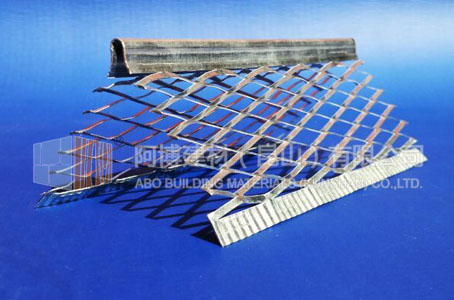

R02 corner beads

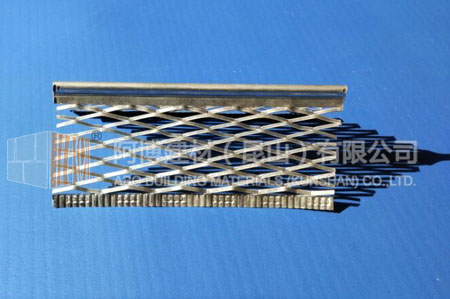

Expanded flange angle beads
Expanded angle beads with reinforcement flange

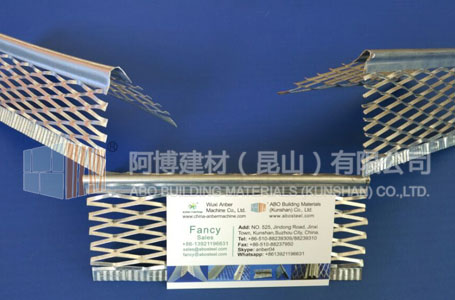

Angle bead with creased reinforce flange

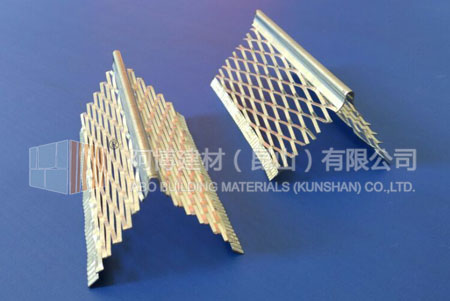

R02 angle beads
Description of R01 corner beads
Angle beads provide a true straight arris protect and reinforces from chipping and cracking. The expanded wings ensures that the bead is firmly embedded in the palster.
R02, 2.5mm radius-60mm legs.
A large section than the R01 which allows for up to 25mm of cement render to be applied due to its longer wing length of 60mm. It’s especially suited for use on pre-stressed concrete, and where pre-formed corners require realignment. A smaller 2.5mm radius at the nib provides a sharp strong knock resistant corner.
Material
0.3-0.7mm Galvanized sheet, stainless steel sheet, aluminum sheet.Specification
Model |
The width of wing |
Material |
Material thickness |
Length |
Pc/Box |
AB-R02/R=2.5/60*60 |
60*60 |
GI/SS |
0.3-0.7 |
2400/2700/3000mm |
50 |
Notice: All dimensions can be customized according to your requirements. |
Applications
The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.The good performance of the item;
Galvanized finish to resist corrosion;
Perforated wing increases bond;
Reinforces plaster edges to prevent accidental damage;
Can be fixed with plaster, adhesive or mechanical fixings;
