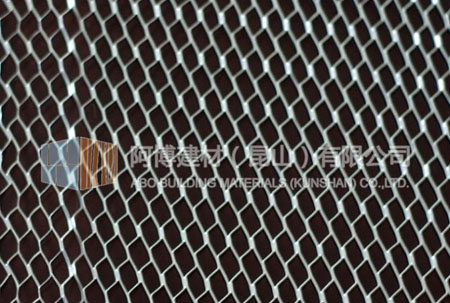

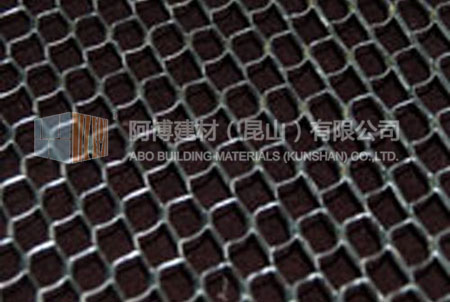

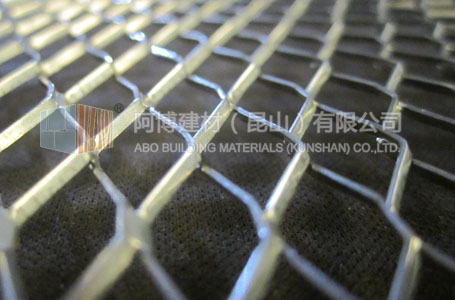

Description of paper-back metal lath

Paper-Back Lath is diamond mesh lath, regular or self furred, to which offset asphalt saturated kraft building paper has been applied.
It's an ideal selection for applications requiring two layers papers, where the synthetic air barrier provides the first paper is already installed.
A superior mesh multi-purpose expanded steel base with an approved Grade-D breather sheet spot attached. Application of asphalt paper-backed (APB) metal lath is used behind stone, traditional stucco and tile installations as a certified breather sheet and also aids in preventing loss of plaster when applying. It is an excellent base for spray-on structural fireproofing, ornamental work, and under ceramic tile. It provides protection against wet areas during stucco curing. APB is available with diamond mesh lath, self-furring dimple lath and self-furring v-groove lath.

Specification

Reference	Weight	Size	Pcs/Bundle	Pcs/Pallet
AB-PML2.5	2.5 ib/yd2	27"*96"	10	500
AB-PML3.4	3.4 ib/yd2	27"*96"	10	500
